Manufacturer Diesel Engine Generator Set 220V Rated Voltage Diesel Powered Generator Portable Generators Diesel

Nome da marca:	SANROCK POWER
Número do modelo:	SPDG20KW
MOQ:	1 conjunto
Preço:	Chat with supplier now for more details.
Detalhes da embalagem:	Pacote nu para máquinas, pacote de caixas de madeira para peças de reposição ou demanda de clientes.
Condições de pagamento:	MoneyGram,Western Union,T/T,D/P,D/A,L/C

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

Zhejiang, China

Certificação:

CE;ISO

Document:

Nome do produto:

conjunto de geradores de tipo aberto / conjunto de geradores de tipo aberto

Freqüência:

50Hz/60Hz

Tensão:

48V, 110V, 220V, 230V, 240V, 380V, 400V, 415V, 480V

Cilindro:

3/4/6/12 – De acordo com a potência

Número do cilindro:

3,4,6,8,12cilindros

Número de fase e ligação:

Sistema de três fases e quatro fios

Sistema de resfriamento:

Resfriamento de Água

Dimensão do grupo (milímetros):

1485*700*1000mm~7300*2440*2800mm

Peso líquido do grupo (quilogramas):

Especificado

Power nominal (KW/1500rpm):

5-2250KVA

Velocidade:

1500/1800 rpm

Tipo:

Tipo de trailer, tipo silencioso, tipo de contêiner, tipo super silencioso, estrutura aberta, tipo p

Potência nominal:

20KW, 30KW, 40KW, 50KW, 80KW, 100KW, 200KW, 300KW, 800KW, 1000KW, 1200KW, 1500KW, 1800KW, 2200KW

Aplicativo:

Fábrica, construção, fazenda, banco etc.

Unidades comuns, unidade de espera

Curso quatro

Logística:

Transporte de máquina inteira ou transporte de desmontagem; Transporte marítimo ou ferroviário

Habilidade da fonte:

100000set/mês

Destacar:

220V diesel engine generator set

portable diesel powered generator

open frame diesel generator with warranty

Descrição do produto

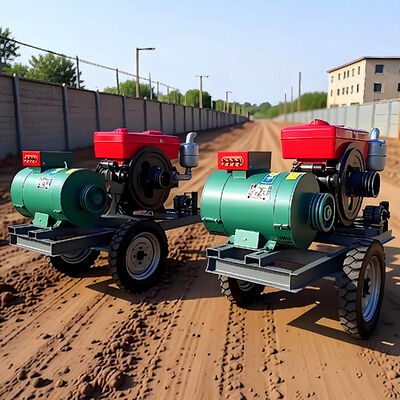

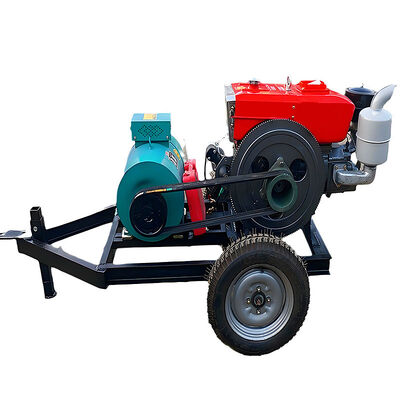

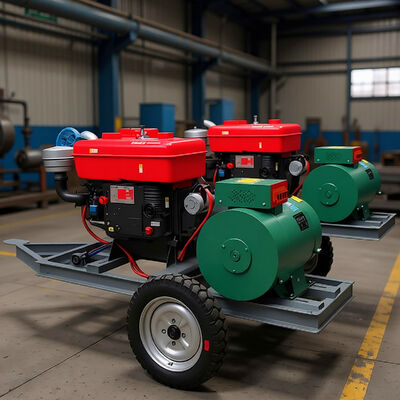

220V Rated Two-Wheel 20kW Open-Frame Diesel Generator
Engineered for applications requiring specific single-phase power supply, this two-wheel 20kW open-frame diesel generator delivers stable 220V output with industrial-grade reliability. The unit features a precision-engineered alternator system optimized for consistent voltage regulation and waveform purity, making it suitable for powering 220V equipment commonly used in international markets and specialized applications.
The generator integrates a proven diesel engine with an open-frame design that maximizes heat dissipation during extended operation. The configuration eliminates the need for complex installation, making it ideal for temporary power applications where quick setup and reliability are critical.
Ideal for construction sites, agricultural operations, event power supply, and emergency backup scenarios, this trailer-mounted solution delivers professional-grade performance with the flexibility to rapidly relocate as operational needs change. The unit is pre-wired for quick connection and includes overload protection and low-oil automatic shutdown for dependable, unattended operation.
Key Specifications:
Rated Voltage: 220V single-phase AC output (50Hz/60Hz switchable)
Power Capacity: 20kW continuous power rating with 22kW peak capacity
Voltage Stability: Automatic Voltage Regulator (AVR) maintains ±1.5% voltage deviation
Mobility System: Balanced two-wheel configuration with pneumatic tires and ergonomic tow handle
Safety Compliance: Built-in circuit breaker, overload protection, and low-oil automatic shutdown

Manufacturer Diesel Engine Generator Set 220V Rated Voltage Diesel Powered Generator Portable Generators Diesel 13

Applicable Industries
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant,
Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company.

Product descriptions from the supplier
100KVA 150KVA 200KVA 300KVA 400KVA 500KVA 700KVA Diesel Genset
"Contact us for specific product details or customized requirements"

Product Description

Technical parameters of diesel generator set
Generator set model:SPDG20KW
Steady state voltage adjustment rate (%):≤± 1
Generator power:20kW/25kVA
Voltage fluctuation rate (%):≤ ± 0.5
Power factor:COSΦ = 0.8 (lagging)
Transient voltage adjustment rate (%):＋20 ～－15
Output voltage:400V/230V
Voltage stabilization time (s):≤1
Generator set current:36A
Steady state frequency adjustment rate (%):≤ ± 1
Rated frequency:50Hz
Frequency fluctuation rate (%):≤ ± 0.5
Rated speed:1500rpm
Transient frequency adjustment rate (%):+ 10 ~ -7
Fuel grade:(standard) 0 # light diesel (normal temperature)
Frequency stabilization time (S):≤3
Diesel generator size:1620*620*1380(L*W*H mm
Diesel generator fuel consumption (100% load):224g/kW·h
Diesel generator weight:600kg
Diesel generator volume(LP7m):95dB(A)
Technical parameters of diesel engine
Cooling method: Closed water-cooling
Oil supply method: direct injection
Engine cylinder number: 4 / L Type
Speed regulation method: Mechanical
Bore stroke: 102*120mm
Intake method: Natural inhalation
Compression ratio: 16.5:1
Overload capacity: 110%
Start method:DC 24V Electric start
Diesel engines Speed: 1500rpm
Technical parameters of generator
Protection level:IP22
Wiring mode:Three-phase four-wire, Y-connection
Generator power: 20kW/25kVA
Adjustment method: AVR (Automatic Voltage Regulator)
Rated voltage: 400V / 230V
Output frequency: 50Hz
Insulation class: H class
Output factor: COSΦ = 0.8 (lag)

Product Name	Diesel generator
Engine	customized
Alternator	customized
Protection	genset shotdown when high water temperature,low oil pressure,shortcuit
Rated Power	20KW,30KW,40KW,50KW,80KW,100KW,200KW,300KW,800KW,1000KW,1200KW,1500KW, 1800KW,2200KW
Cylinder number	3,4,6,8,12cylinders
Cooling System Type	Water Cooling System
Applicable Industries	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Rated Voltage	48V, 110V, 220V, 230V, 240V, 380V, 400V, 415V, 480V
Speed	1500/1800
Frequency	50/60HZ
Diesel Engine	UK, USA, German, Japanese brand engines,4 stroke,water cooled
Alternator model	Stamford/Mecc alte brushless self-excited,IP23,Class H.
Power factor	0.8lagging
Noise level dB(a)	65-95/1m
Excitation	self-excitation
Phase Number and connection	3-phase 4-wire system
Dimension of set (mm)	*14857001000mm~730024402800mm*

Customizable Options: SANROCK POWER Machinery Co., Ltd., offers various customization options for their products, including different genset power and frequency settings. This flexibility allows users to select the most appropriate equipment for their specific requirements, ensuring optimal performance and energy efficiency.

SANROCK POWER Machinery is committed to offering competitive prices without compromising on quality. Their products come with a 3-year warranty period, which provides customers with the assurance and peace of mind necessary to confidently purchase and utilize their generators.

Manufacturer Diesel Engine Generator Set 220V Rated Voltage Diesel Powered Generator Portable Generators Diesel 14

Manufacturer Diesel Engine Generator Set 220V Rated Voltage Diesel Powered Generator Portable Generators Diesel 15

Manufacturer Diesel Engine Generator Set 220V Rated Voltage Diesel Powered Generator Portable Generators Diesel 16

Manufacturer Diesel Engine Generator Set 220V Rated Voltage Diesel Powered Generator Portable Generators Diesel 17

Manufacturer Diesel Engine Generator Set 220V Rated Voltage Diesel Powered Generator Portable Generators Diesel 18

Manufacturer Diesel Engine Generator Set 220V Rated Voltage Diesel Powered Generator Portable Generators Diesel 19

Manufacturer Diesel Engine Generator Set 220V Rated Voltage Diesel Powered Generator Portable Generators Diesel 20

Manufacturer Diesel Engine Generator Set 220V Rated Voltage Diesel Powered Generator Portable Generators Diesel 21

Manufacturer Diesel Engine Generator Set 220V Rated Voltage Diesel Powered Generator Portable Generators Diesel 22

Manufacturer Diesel Engine Generator Set 220V Rated Voltage Diesel Powered Generator Portable Generators Diesel 23

Manufacturer Diesel Engine Generator Set 220V Rated Voltage Diesel Powered Generator Portable Generators Diesel 24

Manufacturer Diesel Engine Generator Set 220V Rated Voltage Diesel Powered Generator Portable Generators Diesel 25

Manufacturer Diesel Engine Generator Set 220V Rated Voltage Diesel Powered Generator Portable Generators Diesel 26

Manufacturer Diesel Engine Generator Set 220V Rated Voltage Diesel Powered Generator Portable Generators Diesel 27

Manufacturer Diesel Engine Generator Set 220V Rated Voltage Diesel Powered Generator Portable Generators Diesel 28

Manufacturer Diesel Engine Generator Set 220V Rated Voltage Diesel Powered Generator Portable Generators Diesel 29

Manufacturer Diesel Engine Generator Set 220V Rated Voltage Diesel Powered Generator Portable Generators Diesel 30

Manufacturer Diesel Engine Generator Set 220V Rated Voltage Diesel Powered Generator Portable Generators Diesel 31

Manufacturer Diesel Engine Generator Set 220V Rated Voltage Diesel Powered Generator Portable Generators Diesel 32

Manufacturer Diesel Engine Generator Set 220V Rated Voltage Diesel Powered Generator Portable Generators Diesel 33

FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;

2.what can you buy from us?
Screw Air Compressor,Reefer Container Generator,Diesel Generator,Light Tower,Sewage Pump,Centrifugal Pump,Fire Pump System,Mobile Pump Truck

3. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
