Remote Areas Diesel Engine Power Generator Portable Diesel Generator Open Type Diesel Generator

Nome da marca:	SANROCK POWER
Número do modelo:	SPDG20KW
MOQ:	1 conjunto
Preço:	Chat with supplier now for more details.
Detalhes da embalagem:	Pacote nu para máquinas, pacote de caixas de madeira para peças de reposição ou demanda de clientes.
Condições de pagamento:	MoneyGram,Western Union,T/T,D/P,D/A,L/C

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

Zhejiang, China

Certificação:

CE;ISO

Document:

Nome do produto:

conjunto de geradores de tipo aberto / conjunto de geradores de tipo aberto

Freqüência:

50Hz/60Hz

Tensão:

48V, 110V, 220V, 230V, 240V, 380V, 400V, 415V, 480V

Cilindro:

3/4/6/12 – De acordo com a potência

Número do cilindro:

3,4,6,8,12cilindros

Número de fase e ligação:

Sistema de três fases e quatro fios

Sistema de resfriamento:

Resfriamento de Água

Dimensão do grupo (milímetros):

1485*700*1000mm~7300*2440*2800mm

Peso líquido do grupo (quilogramas):

Especificado

Power nominal (KW/1500rpm):

5-2250KVA

Velocidade:

1500/1800 rpm

Tipo:

Tipo de trailer, tipo silencioso, tipo de contêiner, tipo super silencioso, estrutura aberta, tipo p

Potência nominal:

20KW, 30KW, 40KW, 50KW, 80KW, 100KW, 200KW, 300KW, 800KW, 1000KW, 1200KW, 1500KW, 1800KW, 2200KW

Aplicativo:

Fábrica, construção, fazenda, banco etc.

Unidades comuns, unidade de espera

Curso quatro

Logística:

Transporte de máquina inteira ou transporte de desmontagem; Transporte marítimo ou ferroviário

Habilidade da fonte:

100000set/mês

Destacar:

portable diesel generator for remote areas

open frame diesel power generator

diesel engine generator with warranty

Descrição do produto

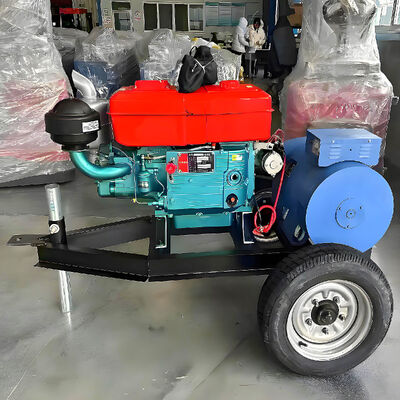

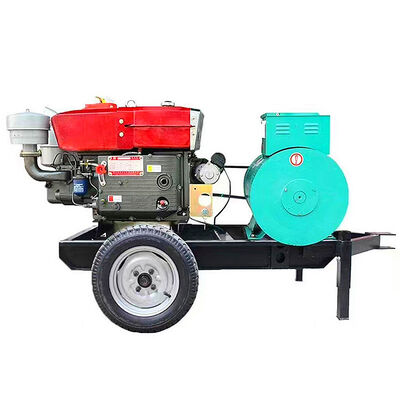

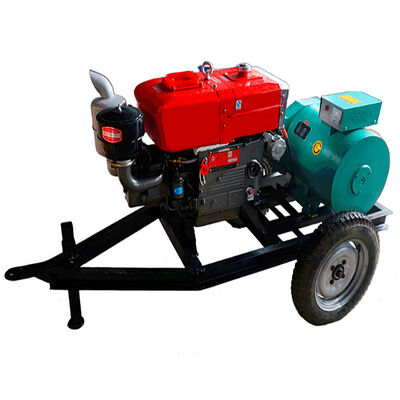

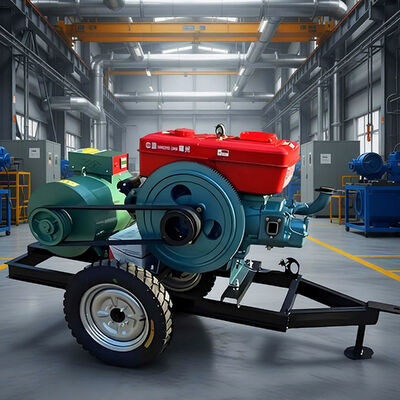

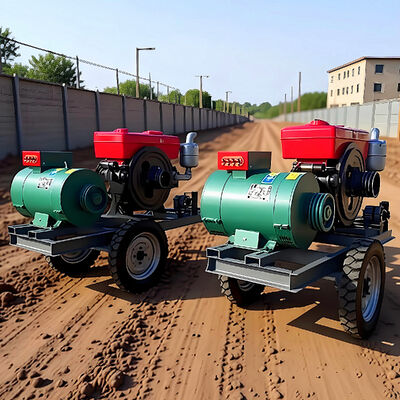

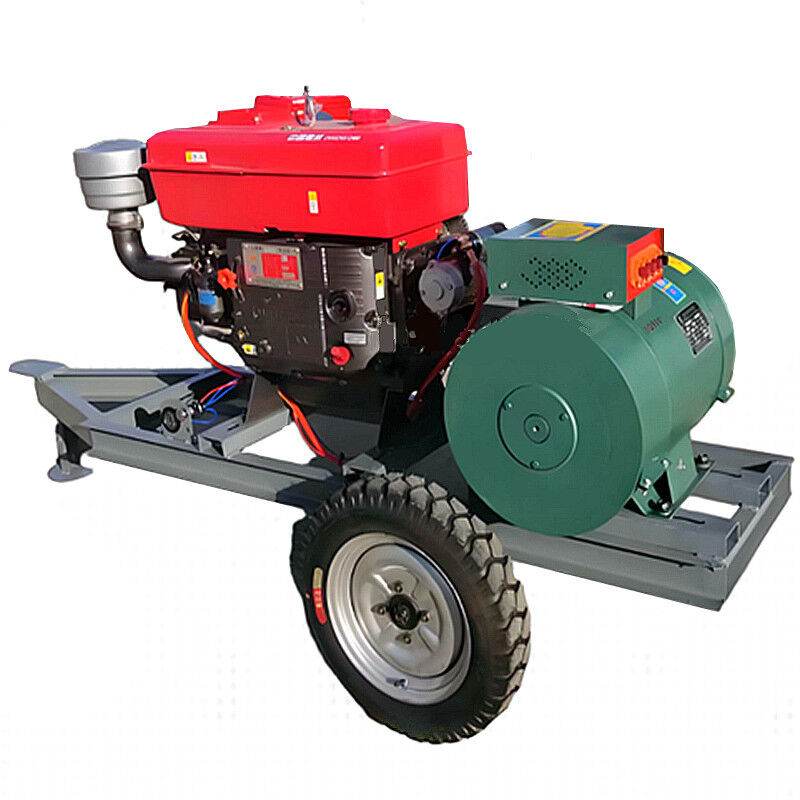

20kW Trailer-Mounted Open Frame Diesel Generator for Remote Areas
This heavy-duty 20kW trailer-mounted open frame diesel generator is specifically engineered to deliver reliable prime power in the most demanding and inaccessible remote locations. Its robust design combines exceptional off-road mobility with uncompromising performance, making it an ideal power solution for mining camps, agricultural operations, rural construction projects, and emergency response teams operating far from established infrastructure.
Mounted on a reinforced, all-terrain trailer with high-clearance axles, heavy-duty suspension, and rugged, large-diameter tires, this unit is built to withstand harsh, unpaved roads and uneven ground. The open frame construction provides superior engine cooling for continuous operation in high-temperature environments while allowing for easy maintenance access—a critical feature when professional service support is hours away.
Key Features for Remote Area Deployment:
Exceptional Off-Road Capability: Designed to be towed by 4x4 vehicles over rough, unmaintained tracks to reach isolated sites.
Extended Autonomous Operation: Features a high-capacity fuel tank and superior diesel fuel efficiency, minimizing the frequency of refueling missions in areas where fuel supply is logistically challenging.
Ruggedized Construction: The generator and trailer are built with corrosion-resistant materials and components to endure extreme weather conditions, from desert heat to high humidity.
Simplified Field Maintenance: The accessible open design allows on-site personnel to perform essential checks and routine servicing with standard tools.
Critical Power Reliability: Delivers stable 20kW output to power drilling equipment, water pumps, communication systems, temporary shelters, and other essential machinery, enabling operations independent of the main electrical grid.
This generator is the definitive power partner for industries and missions where reliability, durability, and mobility are not just advantages but absolute necessities for success in remote environments.

Remote Areas Diesel Engine Power Generator Portable Diesel Generator Open Type Diesel Generator 11

Applicable Industries
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant,
Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company.

Product descriptions from the supplier
100KVA 150KVA 200KVA 300KVA 400KVA 500KVA 700KVA Diesel Genset
"Contact us for specific product details or customized requirements"

Product Description

Technical parameters of diesel generator set
Generator set model:SPDG20KW
Steady state voltage adjustment rate (%):≤± 1
Generator power:20kW/25kVA
Voltage fluctuation rate (%):≤ ± 0.5
Power factor:COSΦ = 0.8 (lagging)
Transient voltage adjustment rate (%):＋20 ～－15
Output voltage:400V/230V
Voltage stabilization time (s):≤1
Generator set current:36A
Steady state frequency adjustment rate (%):≤ ± 1
Rated frequency:50Hz
Frequency fluctuation rate (%):≤ ± 0.5
Rated speed:1500rpm
Transient frequency adjustment rate (%):+ 10 ~ -7
Fuel grade:(standard) 0 # light diesel (normal temperature)
Frequency stabilization time (S):≤3
Diesel generator size:1620*620*1380(L*W*H mm
Diesel generator fuel consumption (100% load):224g/kW·h
Diesel generator weight:600kg
Diesel generator volume(LP7m):95dB(A)
Technical parameters of diesel engine
Cooling method: Closed water-cooling
Oil supply method: direct injection
Engine cylinder number: 4 / L Type
Speed regulation method: Mechanical
Bore stroke: 102*120mm
Intake method: Natural inhalation
Compression ratio: 16.5:1
Overload capacity: 110%
Start method:DC 24V Electric start
Diesel engines Speed: 1500rpm
Technical parameters of generator
Protection level:IP22
Wiring mode:Three-phase four-wire, Y-connection
Generator power: 20kW/25kVA
Adjustment method: AVR (Automatic Voltage Regulator)
Rated voltage: 400V / 230V
Output frequency: 50Hz
Insulation class: H class
Output factor: COSΦ = 0.8 (lag)

Product Name	Diesel generator
Engine	customized
Alternator	customized
Protection	genset shotdown when high water temperature,low oil pressure,shortcuit
Rated Power	20KW,30KW,40KW,50KW,80KW,100KW,200KW,300KW,800KW,1000KW,1200KW,1500KW, 1800KW,2200KW
Cylinder number	3,4,6,8,12cylinders
Cooling System Type	Water Cooling System
Applicable Industries	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Rated Voltage	48V, 110V, 220V, 230V, 240V, 380V, 400V, 415V, 480V
Speed	1500/1800
Frequency	50/60HZ
Diesel Engine	UK, USA, German, Japanese brand engines,4 stroke,water cooled
Alternator model	Stamford/Mecc alte brushless self-excited,IP23,Class H.
Power factor	0.8lagging
Noise level dB(a)	65-95/1m
Excitation	self-excitation
Phase Number and connection	3-phase 4-wire system
Dimension of set (mm)	*14857001000mm~730024402800mm*

Customizable Options: SANROCK POWER Machinery Co., Ltd., offers various customization options for their products, including different genset power and frequency settings. This flexibility allows users to select the most appropriate equipment for their specific requirements, ensuring optimal performance and energy efficiency.

SANROCK POWER Machinery is committed to offering competitive prices without compromising on quality. Their products come with a 3-year warranty period, which provides customers with the assurance and peace of mind necessary to confidently purchase and utilize their generators.

Remote Areas Diesel Engine Power Generator Portable Diesel Generator Open Type Diesel Generator 12

Remote Areas Diesel Engine Power Generator Portable Diesel Generator Open Type Diesel Generator 13

Remote Areas Diesel Engine Power Generator Portable Diesel Generator Open Type Diesel Generator 14

Remote Areas Diesel Engine Power Generator Portable Diesel Generator Open Type Diesel Generator 15

Remote Areas Diesel Engine Power Generator Portable Diesel Generator Open Type Diesel Generator 16

Remote Areas Diesel Engine Power Generator Portable Diesel Generator Open Type Diesel Generator 17

Remote Areas Diesel Engine Power Generator Portable Diesel Generator Open Type Diesel Generator 18

Remote Areas Diesel Engine Power Generator Portable Diesel Generator Open Type Diesel Generator 19

Remote Areas Diesel Engine Power Generator Portable Diesel Generator Open Type Diesel Generator 20

Remote Areas Diesel Engine Power Generator Portable Diesel Generator Open Type Diesel Generator 21

Remote Areas Diesel Engine Power Generator Portable Diesel Generator Open Type Diesel Generator 22

Remote Areas Diesel Engine Power Generator Portable Diesel Generator Open Type Diesel Generator 23

Remote Areas Diesel Engine Power Generator Portable Diesel Generator Open Type Diesel Generator 24

Remote Areas Diesel Engine Power Generator Portable Diesel Generator Open Type Diesel Generator 25

Remote Areas Diesel Engine Power Generator Portable Diesel Generator Open Type Diesel Generator 26

Remote Areas Diesel Engine Power Generator Portable Diesel Generator Open Type Diesel Generator 27

Remote Areas Diesel Engine Power Generator Portable Diesel Generator Open Type Diesel Generator 28

FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;

2.what can you buy from us?
Screw Air Compressor,Reefer Container Generator,Diesel Generator,Light Tower,Sewage Pump,Centrifugal Pump,Fire Pump System,Mobile Pump Truck

3. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
